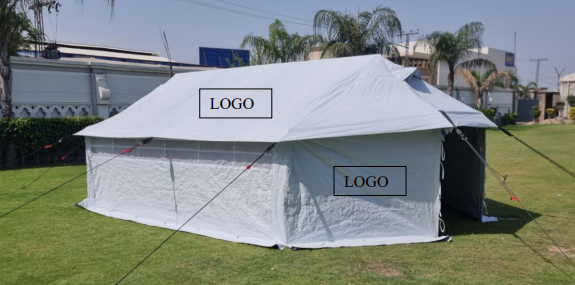

ECO Moedel Family Tent – 4.00 x 6.60 m

ECO model made by PE fabric

Family Tent – 4.00 x 6.60 m connectable. Made of Poly-cotton Waterproof & Fire retardant optionally. Tent manufacturer Pakistan for humanitarian purpose

Key Features:

New generation family tent.
UNHCR/ICRC/IFRC standard
Easy-set up (15 minutes, 3 persons)
Fire retardant (optional), waterproof, rotproof and UV-stabilised

Get a Quote

Item	6.60 × 4.00m Family Tent – 23m²
Size Outer	6.60 × 4.00m	Wall Height: 1.25m	Central Height: 2.20m
Size Inner	3.95 × 3.80m	Wall Height: 1.15m	Central Height: 2.10m
Vestibule	2 (Front & Back) — 1.30m × 4.00m
Floor Area	Outer Tent: 23m²
	Inner Tent: 16m²
	Vestibule: 3.5m² × 2 sides

Make: Double Tent (One Outer Tent, One hanging inner tent)

Materials:

Tent: 180 GSM Waterproof & FR PE Fabric (+/- 15%)
Inner Tent: 130 GSM FR Lining fabric (+/- 10%)

Poles:

3x Standing, 2x Ridge Poles, (30mm & 22mm x 1.20mm)
4x Door Poles, 6x Side Wall Poles (19mmx1.0mm)

Doors Front: 1.30 x 1.40m – Inner Tent: 1.00×1.70
Chimney One Chimney opening, 50cm from one corner on front vestibule. 25x45cm
Ventilation 2 ventilations, one on each top of vestibule with closing flap and mesh
Windows 2 windows of Full length with mosquito mesh and canvas flap.
Logo LOGO printed at Front Door & Roof.
Groundsheet 180GSM – PE Laminated FR Fabric attached with inner tent in Bathtub Style.
Accessories

6mm & 8mm Ropes with runners.
4x Iron Pegs Round (300mm)
6x Iron Pegs V Shape (350mm)
26x iron Pins (230mm)
1x Iron hammer (1KGS x 300mm handle)
1x Repair Kit
Installation Manual in English.

Packing One tent packed in one rolled bale with all accessories.
Weight Approx. 45 Kgs Packed Dimensions : 30x30x230 cm
Volume 0.23 CBM
