Relief Tent

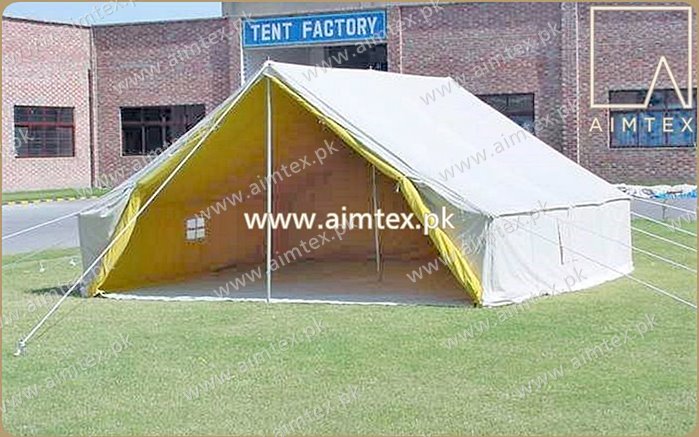

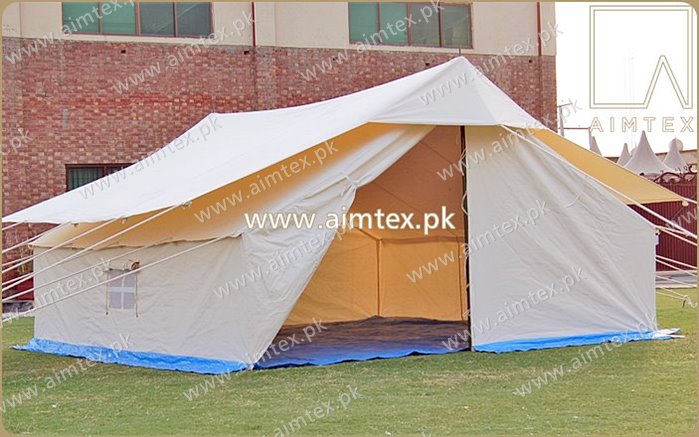

Family Ridge Tent (12m2, 16m2, 24m2)

Ridge Type Family Tents are being used for the relief and emergency situations since long by many organisations like UNHCR, ICRC/IFRC, CARE, JICA, DFID, MSF. This tent is very famous and still in demand because of its design, suitable size for a family, weight and price factor. There any many versions of the same for different department with slightly change in its specifications.
IFRC Item No: HSHETENTF16C (Family Tent), UNHCR Item No: 01993 (Tent Ridge Double Fly Double Fold 4x4m), UNCSS Code No: 271631, UNHCR Item No: 05433 (Tent Ridge Double Fly Double Fold 4x3m)

Key Features:

  • bell tentLight Weight
  • Bell tentAdaptable to All Climates
  • BULLETEasy Setup (15 minutes, 3 persons)
  • BULLETWaterproof, Optional UV resistant & Flame Retardant
Tent Type Dimensions Wall Height Central Height
Double Fly Single Fold 4×3, 4x4m, 4x6m 90 cm 220 cm
Double Fly Double Fold 4×3, 4x4m, 4x6m 90 cm 220 cm
Single Fly Single  Fold 4×3, 4x4m, 4x6m 90 cm 200 cm
Single Fly Double Fold 4×3, 4x4m, 4x6m 90 cm 200 cm


Outer Fly & Tent:
Poly-cotton 350~450 g/m2 +/- 15% finished state, 30hPa water penetration,  fire resistance (optional).

Poly-cotton 100~130 g/m2 +/- 10% finished state, fire resistance (optional)

Ground Sheet :
Laminated Polyethylene (PE) 150~180 g/m2 +/- 5% finished state, 20hPa water penetration.

Standing pole
Ridge pole
Wall  pole
windows with mosquito mesh and easy-to-use flap covers.
Doors: Doors with loop lace closing system
All required resistant tools and accessories including a hammer, steel pegs and assembly instructions.
Tents are packed in rolled bales with all accessories. Bigger size tents are divided into multiple bales.


Weight :
Approx 45 kg

Volume :
Approx 0.20 cbm

200 units per 20’ without pallets
400 units per 40’ without pallets

  • Custom logo printing
  • PVC Mud flap or ground sheet
  • Stove pipe chaminy
